4 shipsets new order of rudder system from Bangladesh

1

Rudder stock with standard accessories

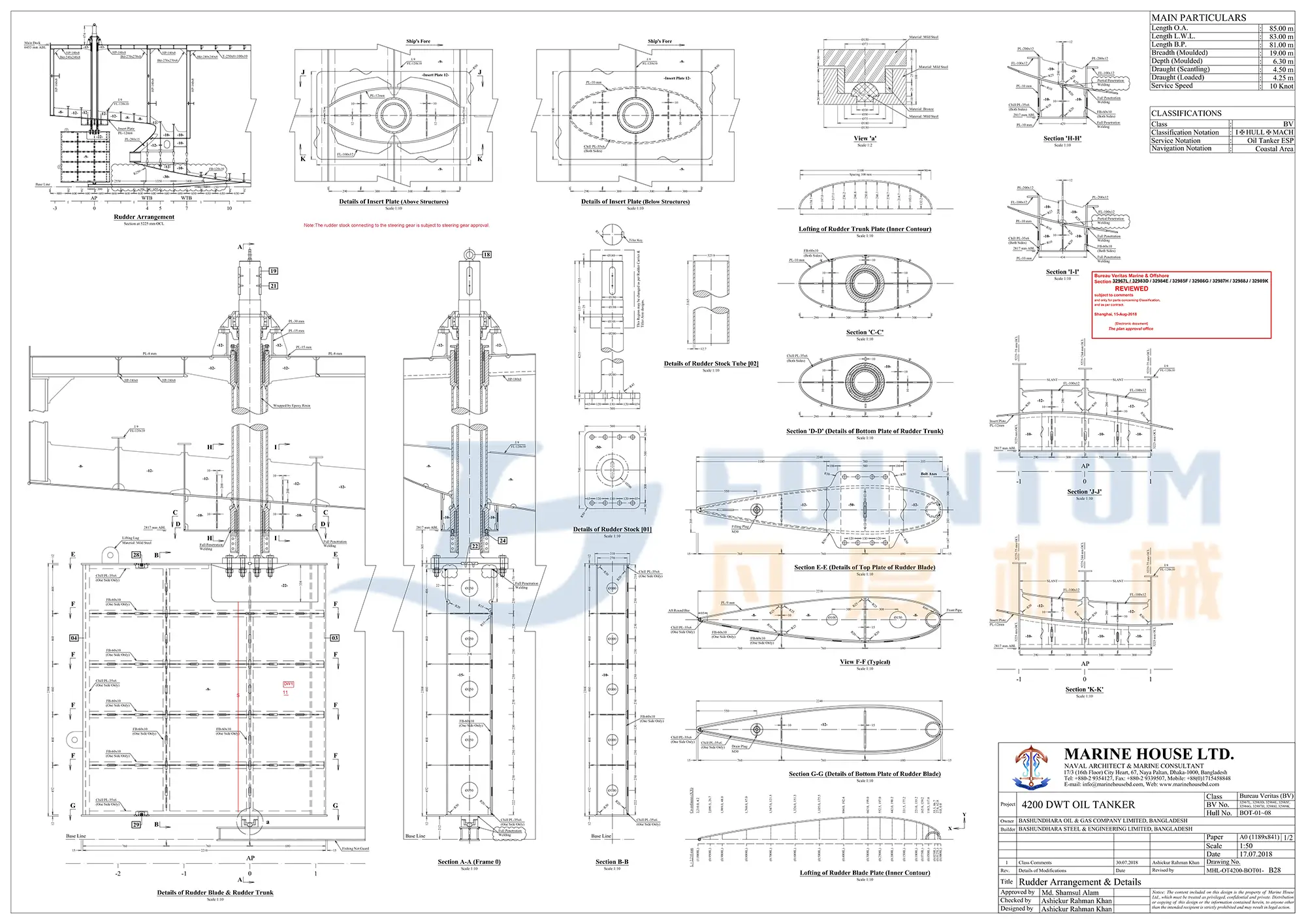

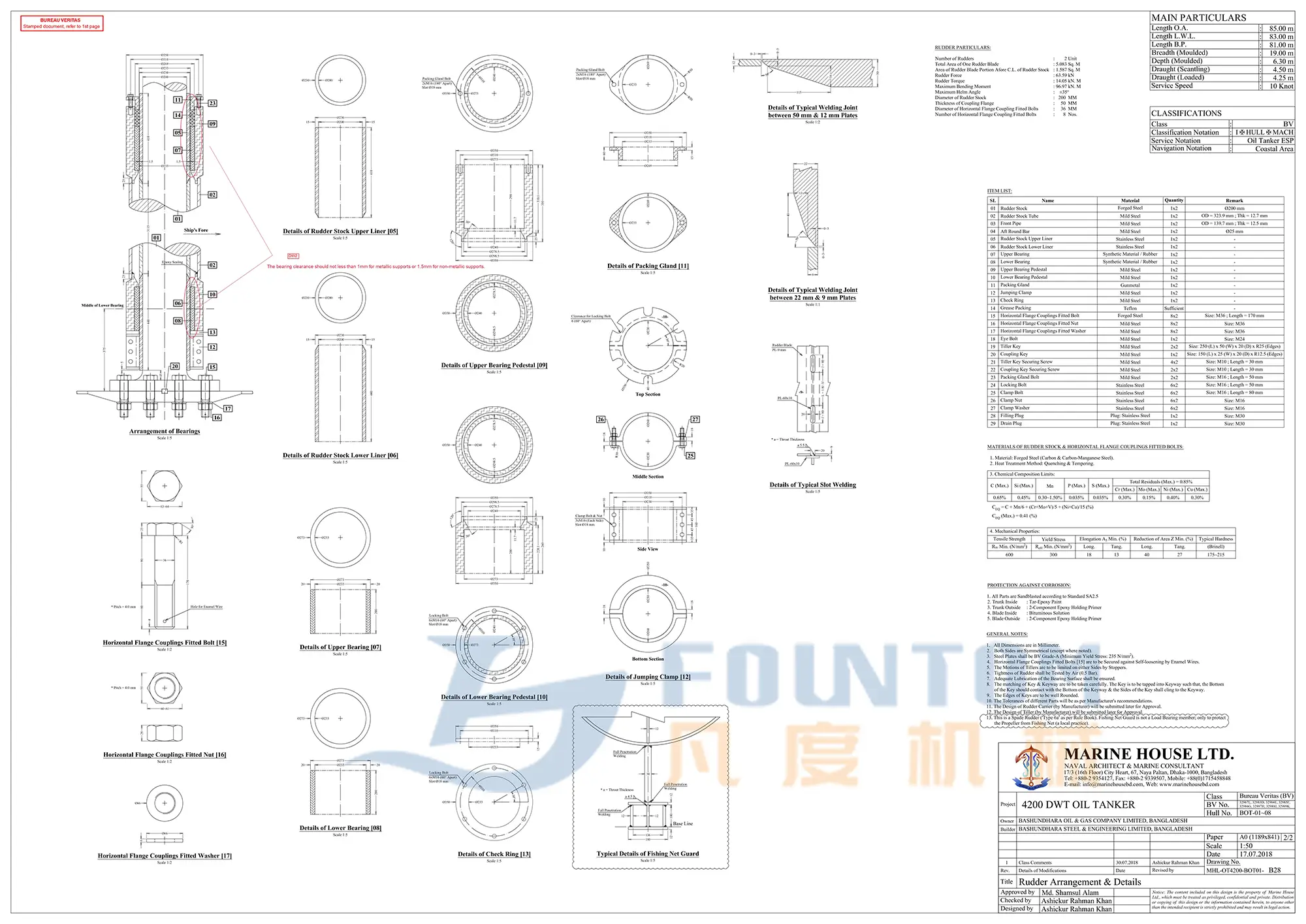

Dimensions and Accessories as per standard and approved drawings

Forged steel

8sets

1

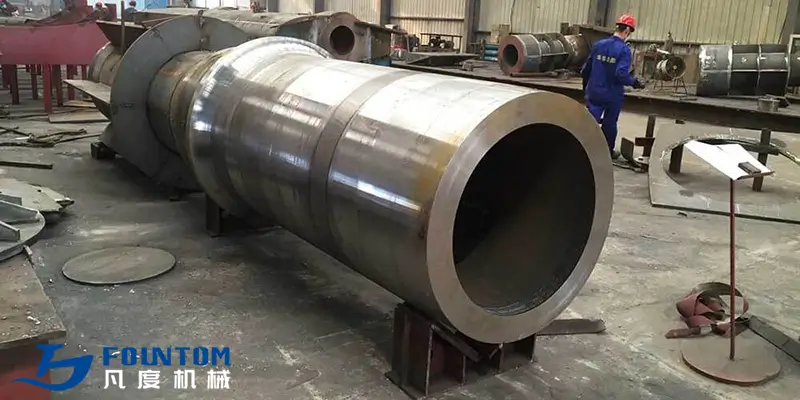

Rudder stock

φ200×4815

Flange 700×500×50

Forged steel

1

2

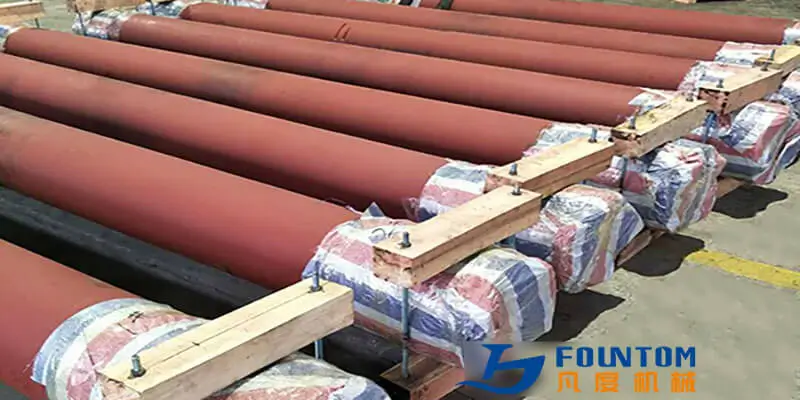

Rudder stock tube

φ323.9×φ12.7×3165

Mild steel

1

3

Front pipe(Inside rudder plate)

φ139.7×12.5×2300

1

4

(Inside rudder plate)

Aft round bar

φ25×2300

1

5

Rudder stock upper ling

φ230×φ200×410

Stainless steel

1

6

Rudder stock lower liner

φ230×φ200×440

1

7

Upper bearing

φ273×φ233×200

High polymer

1

8

Lower bearing

φ273×φ233×200

1

9

Upper bearing pedestal

φ350×φ240×350

Mild steel

1

10

Lower bearing pedestal

φ350×φ240×260

1

11

Packing gland

φ350×15×φ269×φ233×60

Gunmetal

1

12

Jumping clamp

H=160

Mild steel

1

13

Check ring

φ350×φ233×15

1

14

Packing

As per standard

Pledget

1

15

Horizontal flange couplings fitted bolt

M36×170

Forged steel

8

16

Horizontal flange couplings fitted nut

M36

Mild steel

8

17

Horizontal flange couplings fitted washer

M36

8

18

Eye bolt

M24

Mild steel

1

19

Tiller key

250×50×20

2

20

Coupling key

150×25×20

1

21

Tiller key securing screw

M10×30

4

22

Coupling key securing screw

M10×30

2

23

Packing gland bolt

M16×50

2

24

Locking bolt

M16×50

Stainless steel

6

25

Clamp bolt

M16×80

6

26

Clamp nut

M16

6

27

Clamp washer

M16

6

28

Filling plug

M30

Stainless steel

1

29

Drain plug

M30

Stainless steel

1

30

Rudder blade flange

700×700×50

Forged steel

1

31

Rudder bottom assembly

As per standard

Assembly

1

32

Upper rudder bearing

C200

Assembly

1

33

Upper rudder bearing seat

As per standard

Assembly

1
