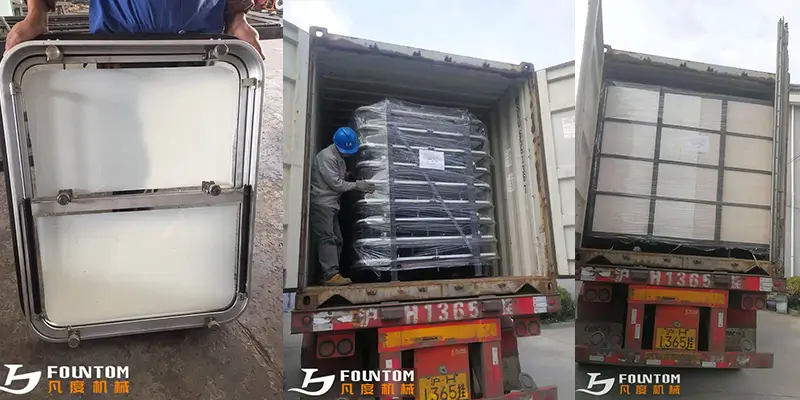

4 shipsets panels aluminum doors and windows to Bangladesh

Sl. No.

Product Name

Specification/Type/Brand

QTY

Unit

1

Wall Panel

B-0 class, 25mm, Pvc/Galv, c/w installation profiles
ABS or BV or CCS Type approval certificate

475

㎡

2

Ceiling

B-0 class, 25mm, Pvc/Galv, c/w installation profiles
ABS or BV or CCS Type approval certificate

185

㎡

3

Door

Material: Steel with plastic coated. Fire class: B15
With louver, Opening: Inside, left handed opening.
Door Frame Size (Out to out) (H × W) 1650 mm × 700 mm
Door Opening Size (H x W) 1500 mm x 600mm
Certificate: MTC

5

PC

4

Insulation

Rockwool (Comfort Insulation)

150

㎡

5

Window

Vertically Half Sliding Rectangular Aluminum Window, Toughened safety glass: 8mm, Size: H900xW750mm

31

PC

6

Window

Wheelhouse front rectangular aluminum fixed bolted Window, Toughened safety glass: 8mm, Size: H900xW750mm

3

PC

7

Window

Wheelhouse side trapezoidal angular aluminum fixed bolted window, Toughened safety glass: 8mm, Size: 1390/1100x900mm, The trapezoidal window pair should be Port & Starboard side are of mirror image/opposite settings provision

2

PC

8

WH Window consisting of CVS

Wheelhouse window with a clear view screen.
Material: Aluminum, Size: H900xW750mm
Toughened safety glass, thickness: 10mm,
CVS Dia 300mm, External Dia 356mm
Power supply: 220V, 1 Phase, 50 Hz
Power Less than or equal to 80W.

1

PC

9

Door

Watertight aluminum doors, quick open & close, single handle type. Material: Aluminum plates, Steel frame. Frame Size: 1650mm × 700 mm, Clear size: 1500x600mm, Plate thickness: 4mm, 2nos hinges, 04nos toggles

23

PC

10

Port holes

Fixed type porthole without dead cover
Material: Aluminum, Clear size: 250mm, glass tk.: 8mm

3

PC

11

Port holes

Open type porthole with dead cover
Material: Aluminum, Clear size: 250mm, glass tk.: 8mm

13

PC
