7 shipsets marine fix pitch propellers to Indonesia

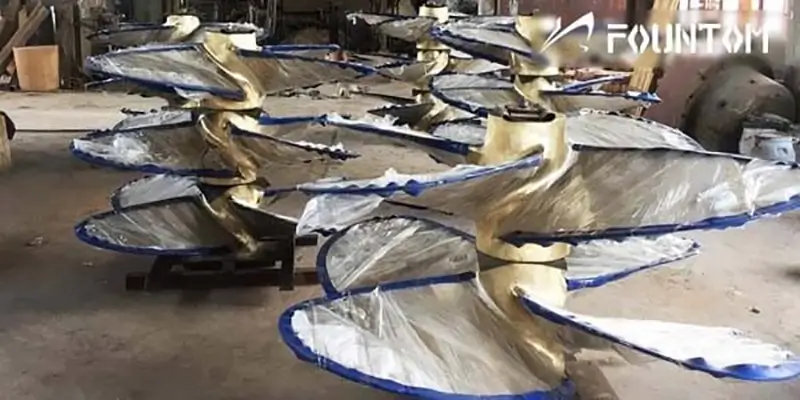

Fountom has just finished delivering 7 ship sets of fixed pitch propeller for the Indonesia shipyard. The 4 blade propellers are for 3 different ship types, each designed to optimize its operating profile, and achieve the greatest propulsion efficiency.

Fountom is capable of designing, and manufacturing all IACS member approved fixed pitch propellers in 3~6 blades. View more of our propellers now.

14 Propellers For 7 Ships

6Nos Fixed pitch propeller for Vessel Type-A
Engine Power: 2 x 550 BHP
Engine RPM: 1200, Gear Ratio: 3.5:1
Propeller Typ. = TROOST B-SERIES
Propeller diameter = 1800 mm
No of blade = 4, Pitch-dia. ratio = 0.64
BAR / DAR = 0.7, Material: Cu3
Calculated weight: 475kg

6Nos Fixed pitch propeller for Vessel Type-B
Engine Power: 2 x 720 BHP
Engine RPM: 1200, Gear Ratio: 3.5:1
Propeller Typ. = TROOST B-SERIES
Propeller diameter = 2000 mm
No of blade = 4, Pitch-dia. ratio = 0.53
BAR / DAR = 0.55, Material: Cu3
Calculated weight: 570kg

2Nos Fixed pitch propeller for Vessel Type-C
Engine Power: 2 x 818 BHP
Engine RPM: 1350, Gear Ratio: 3.5:1
Propeller Typ. = TROOST B-SERIES
Propeller diameter = 2000 mm
No of blade = 4, Pitch-dia. ratio = 0.49
BAR / DAR = 0.7, Material: Cu3
Calculated weight: 675kg

Delivery Details

Delivery time: 40 days since confirmation of drawings and down deposit.
